Description

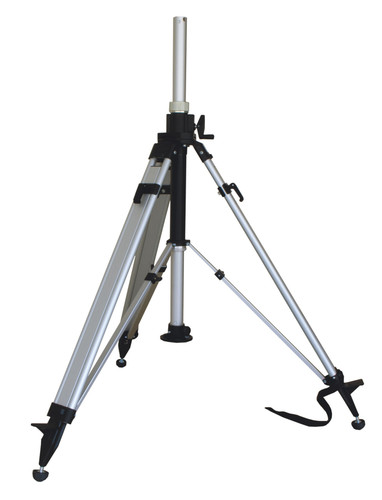

The new Nedo Industrial Line elevating tripod #210710 is designed especially for the use of 3D laser scanners. The laser scanner can be mounted either at the top or at the bottom of the elevating column ensuring maximum flexibility. When mounted at the top, the laser scanner can be easily lifted to desired working height. The mounting plate features a standard 5/8x11 male thread.

The indirect gear unit allows for maximum convenience. For stability reasons, the maximum working height is limited to 13’ overhead. For shaft applications, the laser scanner can be mounted at the bottom of the elevating column and inserted from above the shaft cover into the shaft compartment. In this inverted application, NEDO recommends going down no further than 18' into any shaft compartment to maintain stability and structural integrity. Additional rack elements are inserted into the elevating head and securely connected to the previously inserted toothed column element with the aid of an innovative locking device.

For even more comfort, the laser scanner can be lifted with a cordless power drill. A proper screw bit to replace the crank is supplied as a standard. Needless to say that the Nedo Industrial Line Elevating tripod #210710 is equipped with a twist proof elevating column with centric clamping and combi tripod shoes for all terrain use.

Included

Elevating tripod with toothed column

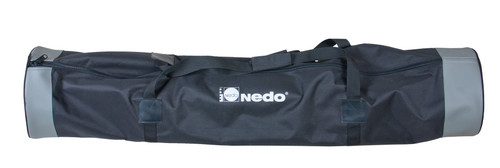

4 rack elements, 1 m each, in a carrying bag
NEDO 5/8-3/8" Tripod Adaptor
NEDO Combi Tripod Feet
5 mm Allen key
Magnetic bit holder for cordless screwdriver
Hand crank with magnetic bit holder

Technical Data

Min. effective height

approx. 3'8" / 1.10 m
Max. effective height

approx. 16'5" / 5 m
Depth of shaft

approx. 13'1" / 4 m
Retracted length

approx. 48" / 1.22 m
Weight

approx 20 lbs. / 9 kg
Tripod head

flat, 4.3" / 110 mm

Optional Adapters for 3D Laser Scanners

NEDO Laser Scanner Adapters

Depending on the weight, overhead mounting of a 3D laser scanner on a shaft tripod with a 5/8’’ socket may be difficult. To make this easier, adapters can be supplied as optional accessories for various laser scanners. They permit safe and easy attachment to the tripod.
