SitePro 3-D Rotary Laser (#27-LR430HDV) - Standard kit

SitePro 3-D Rotary Laser (#27-LR430HDV)

SKU:
LR430HDV
Shipping:
Free Shipping
$1,108.00
(No reviews yet) Write a Review

The LR 430HDV is a 3D rotary laser featuring three 360° plane leveling system - horizontal and two 90° vertical rotating laser planes.

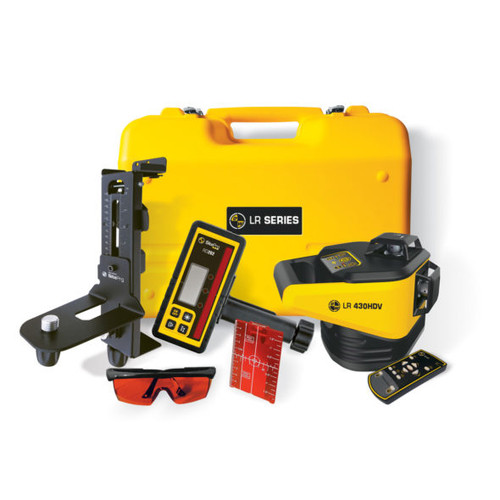

Standard Kit Includes: LR 430HDV rotary laser, laser detector with bracket, remote, universal mount, magnetic target, glasses, rechargeable battery/charger kit, 4 'C' alkaline batteries, carrying case, user guide

Complete Kit Includes: LR 430HDV rotary laser, laser detector with bracket, remote, universal mount, magnetic target, glases, rechargeable battery/charger kit, 4 'C' alkaline batteries, carrying case, user guide, aluminum tripod (#01-ALC20-B), 13' aluminum leveling rod (choose your graduation)

FEATURES:
  • ±1/16-in at 100 feet (±1.8 mm at 30 m) leveling accuracy
  • 2,950 ft (900 m) diameter working range with detector
  • Extremely high rotation speed of up to 2,000 rpm
  • Electronic self-leveling
  • Three integrated rotary head with built-in 635 nm diodes
  • Compact, ergonomic design with single button operation
  • Multiple scan angles, beam positioning, and variable rotation speeds
  • Single axis ±4° slope
APPLICATIONS:
  • Interior & exterior, light to medium commercial, residential construction
  • Leveling, alignment and squaring
  • Checking elevations, concrete forms, footings, foundations
  • Square and align walls, partitions, and corners
  • Installation of ceilings and floors
TECHNICAL DATA:
Leveling Horizontal w/2x 90° Verticals
 Horizontal Accuracy ±1/16-in at 100-ft (±1.8 mm at 30m)
 Vertical Accuracy ±1/8-in at 100-ft  (±3 mm at 30m)
 Angle Accuracy 20”
 Leveling Type Electronic Self-Leveling (±4º)
Slope/Grade Single Axis -4º to +4º
Working Range (dia.)
 Without Detector Up to 65-ft (20 m)
 With Detector Up to 2,950-ft (900 m)
Beam Rating 635 nm, Class 2
Rotation Speed 400, 800, 2000 RPM
Scanning Preset: 0°, 15°, 45°, 90°
Power Supply Four (4) C Cell Alkaline or Li-ion Rechargeable Batteries
Operating Time
 w/Li-Ionen Battery 10.5 to 23 hrs
 w/Alkaline Batteries 13 to 35 hrs
Environment IP55, Water/Dust Resistant
 Operating Temp. 14° to 112° F (-10° to + 45° C)
 Storage Temp. -4° to 158° F (-20° to 70° C)
Dimension 8.5 x 6.0 x 6.2-in (215 x 150 x 156 mm)
Weight (instrument) 4.7 lb (2.07 kg)

*Detector may be different than shown in kit picture.
