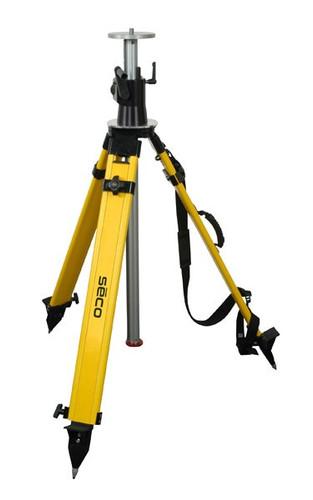

- Seco's Universal Tri-Max® Elevator Tripod features a working height range of 4.10 ft (1.20 m) collapsed to 8.60 ft (2.62 m) extended with the center column at full height
- The center column independently lifts 1.00 meter
- A gear box controls lift and descent so the center column cannot free fall
- The 5/8 x 11 mounting head is removable and adjustable in azimuth direction
- Machined-aluminum elevator column and fiberglass legs makes for a robust and easy-to-use laser instrument tripod
- Applications include laser scanning and robotics
- Fiberglass Legs
- Stable for instruments up to 25 lb (11.33 kg), under most conditions
- Weighs 29.00 lb (13.20 kg)
- Collapsed length 53 inches
Click Here to view Product Brochure
