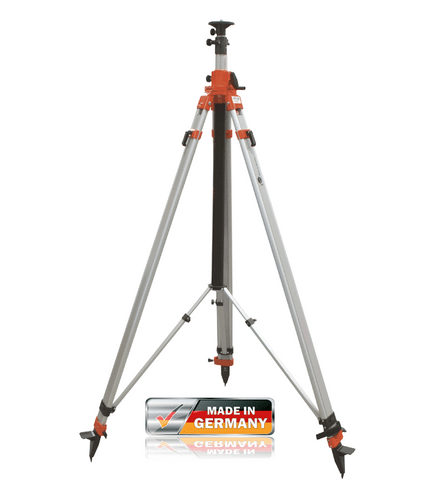

Features-
- Indirect gear unit, reinforced for easy handling and less wear and tear
- Double telescope for a wide working range
- Additional leg struts for extra stability
- Inch and mm scale on elevating column
- Circular bubble
- Strong aluminum extension legs, silver anodized
- 3D laser scanner tripod head and plate made of aluminum, powder-coated
- Break-proof quick release levers, made of aluminum
- Additional screw clamps
- Brass hinge pins for extra stability
- Tripod feet made of aluminum w/ replaceable steel points
Specifications-
|
Min. effective height
|
approx. 5'10" / 1.77 m |
| Max. effective height |
approx. 13'1" / 4.00 m |
| Retracted length |
approx. 6'2" / 1.87 m |
| Weight |
25 lbs. / 11.50 kg |
| Holding screw |
5/8’’ x 11 thread |
| Tripod plate |
Ø 6.5’’ / 167 mm |
| Telescopic section |
2-fold |
| Adjustable column range |
23" / 23" / 600 / 590 mm |
Suitable for: Heavy-duty Rotating Lasers, Machine Control and 3D Laser Scanners
Optional Adapters for Laser Scanners-
Depending on the weight, overhead mounting of a 3D laser scanner on a shaft tripod with a 5/8’’ socket may be difficult. To make this easier, adapters can be supplied as optional accessories for various laser scanners. They permit safe and easy attachment to the tripod. Choose your Laser Scanner adapter here.
