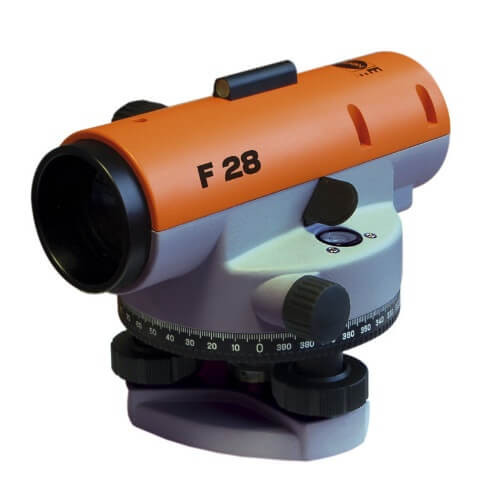

Nedo F-Series level features first-class optics with 28X magnification, sturdy metal housing, a top-quality magnetic-damped compensator and a modern design. Just right for use under tough conditions.
Specifications:
Image | upright |
Magnification | 28X |
Clear objective aperture | 1.2" / 30 mm |
Shortest focusing distance | 23.6" / 0.6 m |
Multiplication factor | 100 |
Compensator operating range | +15' |
Setting accuracy | +0.3" |
Horizontal circle | 360° |
Accuracy 1 km Double Run Leveling Standard Deviation |
+0.08" / 2.0 mm |
Protection class | IP 54 |
Weight | 2.8 lbs. / 1.26 kg |
Connecting thread | 5/8" x 11 |
